系統簡介

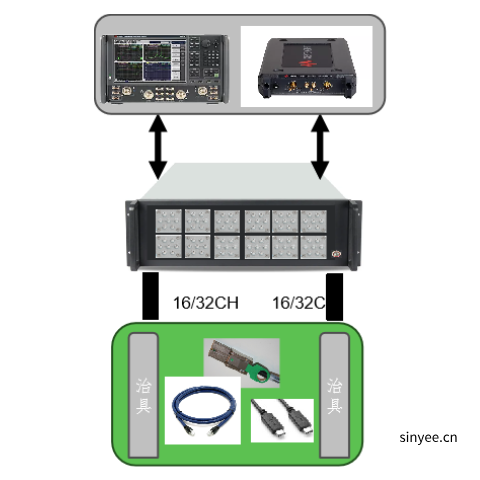

LET-9000P PCB阻抗和高速線纜測量系統，是可以按照標準規范完成對PCB或電纜進行阻抗參數的準確測量。借助與KS的優秀硬件及自有的開關系統，提供給客戶具有性價比的高效率的測量系統。

主要測量參數

◆  Differential Impedance

◆  Intra-Pair Skew

◆  Propagation Delaky

◆  Pair Attenuation

◆  Insertion Loss Fit at Nyquist Frequencies (Normative)

◆  IMR: Integrated Multi-reflection (Normative)

◆  IXT: Integrated Crosstalk between SuperSpeed Pairs (Normative)

◆  IRL: Integrated Return Loss (Normative)

◆  SCD12/SCD21: Differential to Common-Mode Conversion

◆  Differential Insertion Loss (Informative)

◆  Differential Return Loss (Informative)

◆  Differential NEXT & FEXT between SS Signal Pairs (Informative)

◆Differential NEXT & FEXT between D+/D- Pair and SS Signal Pairs (Informative)
